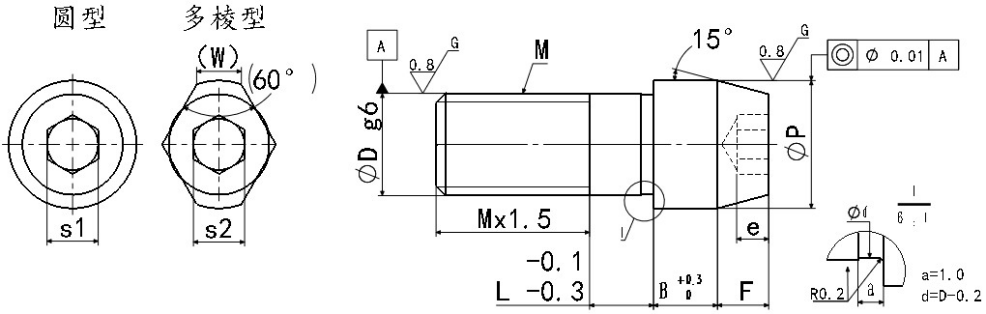

定位销大头锥角型外螺纹型内六角孔型圆型
请按照选型步骤①-⑧选择型式和参数后进行订购。
订货举例：型式（①Type.②D公差.③P公差.④D）-⑤P-⑥L-⑦B-⑧M
JASKHR3-P6-L2-B3.5-M3
JAHKHR6-P8-L6-B3.5-M5
·
·
|
Type |
相当材质 |
表面处理 |
硬度 |
|
|
圆型 |
多棱型(适用于D≥6) |
|||
|
JASKR |
JAHKR |
SKS3 |
/ |
58-61HRC |
|
JASKRG |
JAHKRG |
SKS3 |
镀硬铬 |
58-61HRC/镀层硬度750HV |
|
JASCR |
JAHCR |
SUS440C |
/ |
53HRC |
|
JASS |
JAHS |
SUS303 |
/ |
/ |
·
·
|
Type |
D公差选择 |
P公差选择 |
D |
P |
L |
B |
M |
F |
(W) |
s1 |
s2 |
e |
||
|
圆型 |
多棱型 |
圆型 |
多棱型 |
|||||||||||
|
JASKR |
JAHKR |
M |
M |
3 |
6.00~6.50 |
/ |
2~6 |
3.5~10.0 |
3 |
2 |
/ |
3 |
/ |
2 |
|
4 |
6.50~7.00 |
/ |
2~8 |
2.5~10.0 |
3、4 |
2 |
/ |
3 |
/ |
2 |
||||
|
5 |
6.50~8.00 |
/ |
3~10 |
3、4、5 |
2 |
/ |
3 |
/ |
2 |
|||||
|
6 |
6.50~10.00 |
8.00~10.00 |
2.5~12.0 |
4、5、6 |
2.5 |
3 |
3 |
3 |
2 |
|||||
|
8 |
9.00~13.00 |
10.00~13.00 |
5~10 |
3.0~15.0 |
4、5、6、8 |
3 |
3.5 |
4 |
4 |
2.5 |
||||
|
10 |
11.00~15.00 |
12.00~15.00 |
5~15 |
4.5~20.0 |
5、6、8、10 |
4 |
4 |
5 |
5 |
3 |
||||
|
12 |
13.00~18.00 |
13.00~18.00 |
8~15 |
6.0~20.0 |
6、8、10、12 |
5 |
5 |
6 |
6 |
4 |
||||
|
16 |
17.00~25.00 |
17.00~25.00 |
8~20 |
8.0~20.0 |
8、10、12、16 |
5 |
7 |
8 |
8 |
5 |
||||
|
20 |
22.00~30.00 |
22.00~30.00 |
10~20 |
10、12、16、20 |
5 |
9 |
8 |
8 |
5 |
|||||
·
·
|
D或P |
D、P公差选择 |
||||
|
M |
P |
G |
H |
S |
|
|
m6 |
p6 |
g6 |
h7 |
/ |
|
|
2.00-3.00 |
+0.008 |
+0.012 |
-0.002 |
0 |
0 |
|
3.01-6.00 |
+0.012 |
+0.02 |
-0.004 |
0 |
|
|
6.01-10.00 |
+0.015 |
+0.024 |
-0.005 |
0 |
|
|
10.01-18.00 |
+0.018 |
+0.029 | |||
