直线轴承用调整环
订货举例：型式(①Type.②NO.)-③T
WAMT10-T50
| 型号 | 相当材质 | 表面处理 |
| WAJTY | S45C | 四氧化三铁保护膜 |
| WAJA | AL6061 | - |

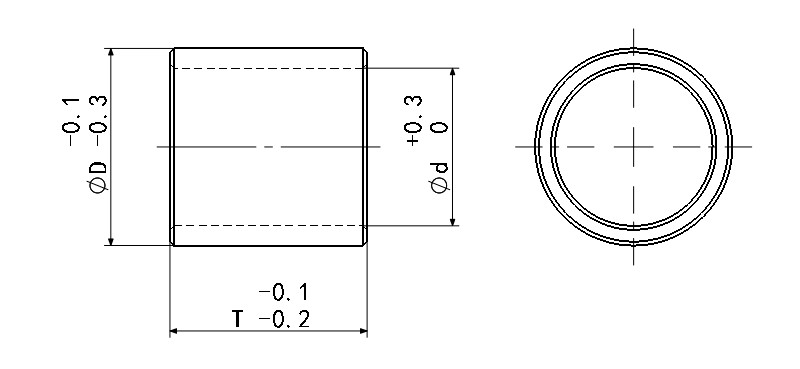

| 型式 |
T 指定单位1mm |
D | d | |
| 型号 | NO. | |||
|
WAJTY WAJA |
3 | 5~40 | 7 | 4 |
| 4 | 5~50 | 8 | 5 | |
| 5 | 10 | 6 | ||
| 6 | 12 | 7 | ||
| 8 | 15 | 9 | ||
| 10 | 10~100 | 19 | 11 | |
| 12 | 21 | 13 | ||
| 13 | 23 | 14 | ||
| 16 | 28 | 17 | ||
| 20 | 32 | 22 | ||
| 25 | 40 | 27 | ||
| 30 | 10~150 | 45 | 32 | |
| 35 | 52 | 37 | ||
| 40 | 60 | 42 | ||
| 50 | 80 | 52 | ||
