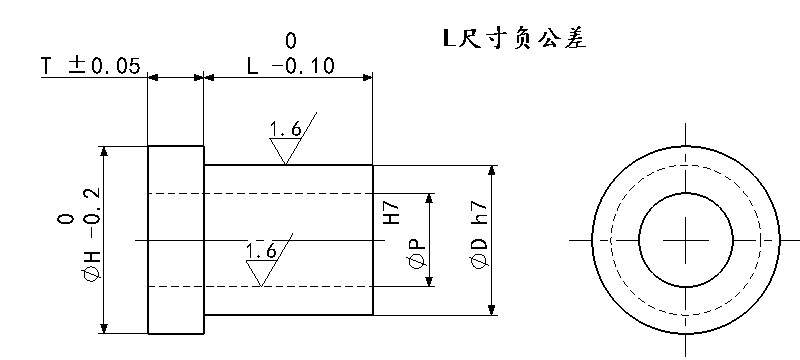

金属轴环台阶调整环负公差
· 请按照选型步骤①-⑥选择型式和参数后进行订购。
订货举例：型式①Type-②D-③P-④H-⑤T-⑥L
ZJATY-D25.5-P12.5-H33.5-T10.7-L40.2
|
型号 |
L尺寸公差 |
材质 |
表面处理 |
|
ZJATY |
0 |
S45C |
四氧化三铁保护膜 |
|
ZJATN |
无电解镀镍 |
||
|
ZJAS |
SUS303 |
- |
|
|
ZJCTY |
+0.1 |
S45C |
四氧化三铁保护膜 |
|
ZJCTN |
无电解镀镍 |
||
|
ZJCS |
SUS303 |
- |
·
|
型号 |
Dh7 |
PH7 |
H |
T |
L |
|
|
5.0~10.0 |
2.0~8.0 |
7.0~16.0 |
1.0~20.0 |
1.0~5.0 |
|
|
5.1~10.0 |
||||
|
|
10.1~25.0 |
||||
|
|
25.1~40.0 |
||||
|
L尺寸负公差 |
40.1~50.0 |
||||
|
ZJATY |
10.5~20.0 |
2.0~18.0 |
12.5~26.0 |
1.0~5.0 |
|
|
ZJATN |
5.1~10.0 |
||||
|
ZJAS |
10.1~25.0 |
||||
|
|
25.1~40.0 |
||||
|
|
40.1~50.0 |
||||
|
|
20.5~30.0 |
2.0~28.0 |
22.5~40.0 |
1.0~20.0 |
|
|
L尺寸负公差 |
20.1~30.0 |
||||
|
ZJCTY |
30.1~40.0 |
||||
|
ZJCTN |
40.1~50.0 |
||||
|
ZJCS |
30.5~40.0 |
6.0~36.0 |
32.5~50.0 |
1.0~20.0 |
|
|
|
20.1~30.0 |
||||
|
|
30.1~40.0 |
||||
|
|
40.1~50.0 |
||||
|
|
40.5~50.0 |
10.0~44.0 |
42.5~60.0 |
1.0~20.0 |
|
|
|
20.1~30.0 |
||||
|
|
30.1~40.0 |
||||
|
|
40.1~50.0 |
·
！通用加工条件①L+T≤Px8 ②P≥8且L+T≥Px4时，带有中间退刀槽
